Your present location:Home >> OLED Display >> 2.69 inch full color AMOLED with touch panel, 800x600, GDOJ0269C01-T01
2.4inch OLED

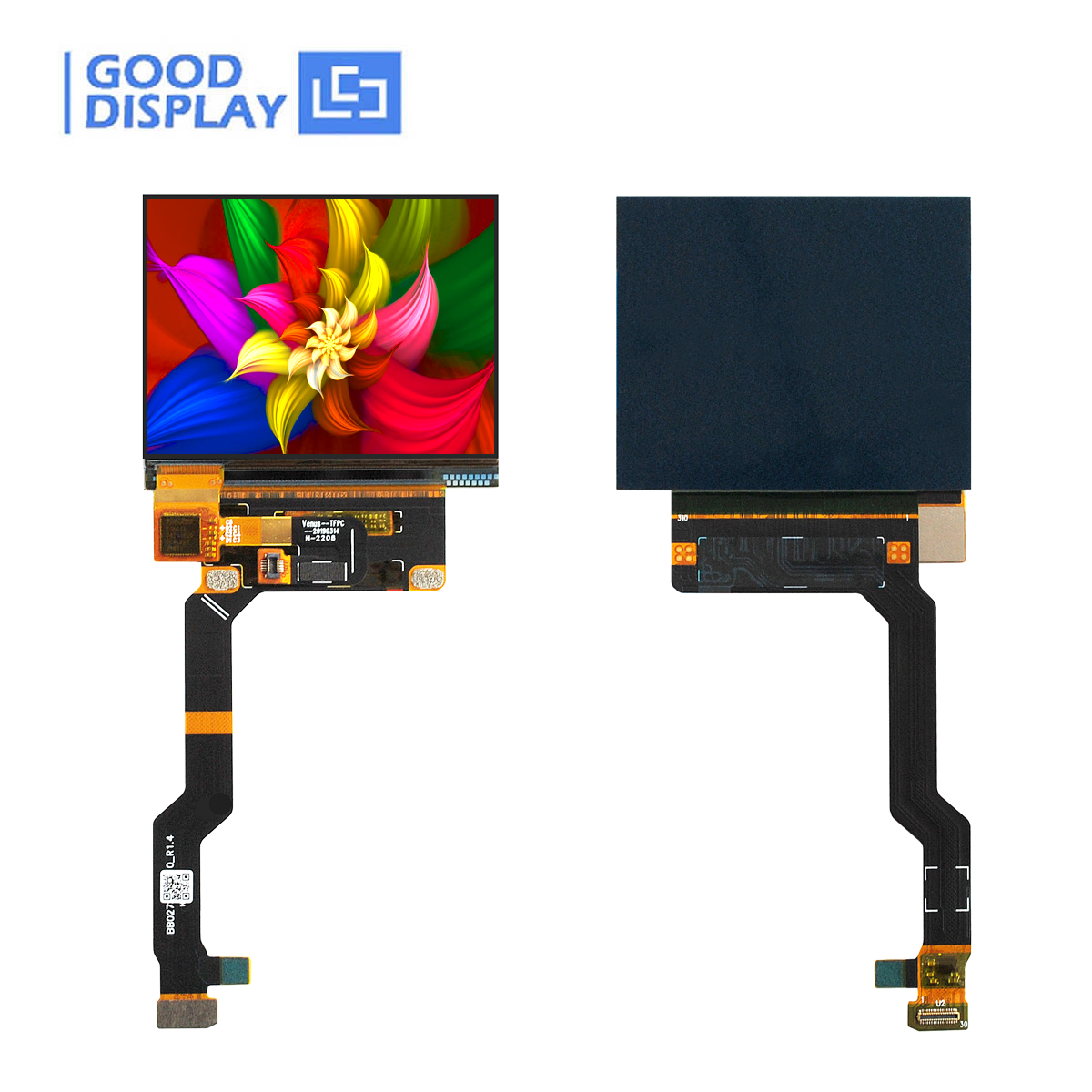

  • Product Name: 2.69 inch full color AMOLED with touch panel, 800x600, GDOJ0269C01-T01
  • Code: 90069
  • Quantity in stock:
  • Retail price:
  • Unit of measurement:
  • Net weight:
  • Views : 985






GDOJ0269C01-T01: 2.69-Inch AMOLED Display Module with Touch Panel

2.69 inch full color AMOLED display has a high level of clarity and vivid colors, with a resolution of 800x600pixels and 16.7 million colors, which can present extremely delicate images and text. In addition, it also has fast response speed and high contrast, allowing users to operate and view screen content more smoothly. The display uses DSI 2-laneinterfaces, making it easy for users to connect and use with various devices








PART NUMBER GDOJ0269C01-T01
DIAGONAL SIZE 2.69"
DISPLAY MODE AMOLED
DISPLAY COLOR 16.7M
DRIVER IC(Type) RM69700
TOUCH IC(Type) S3601
NUMBER OF PIXELS 600RGBx800
INTERFACE DSI 2-lane

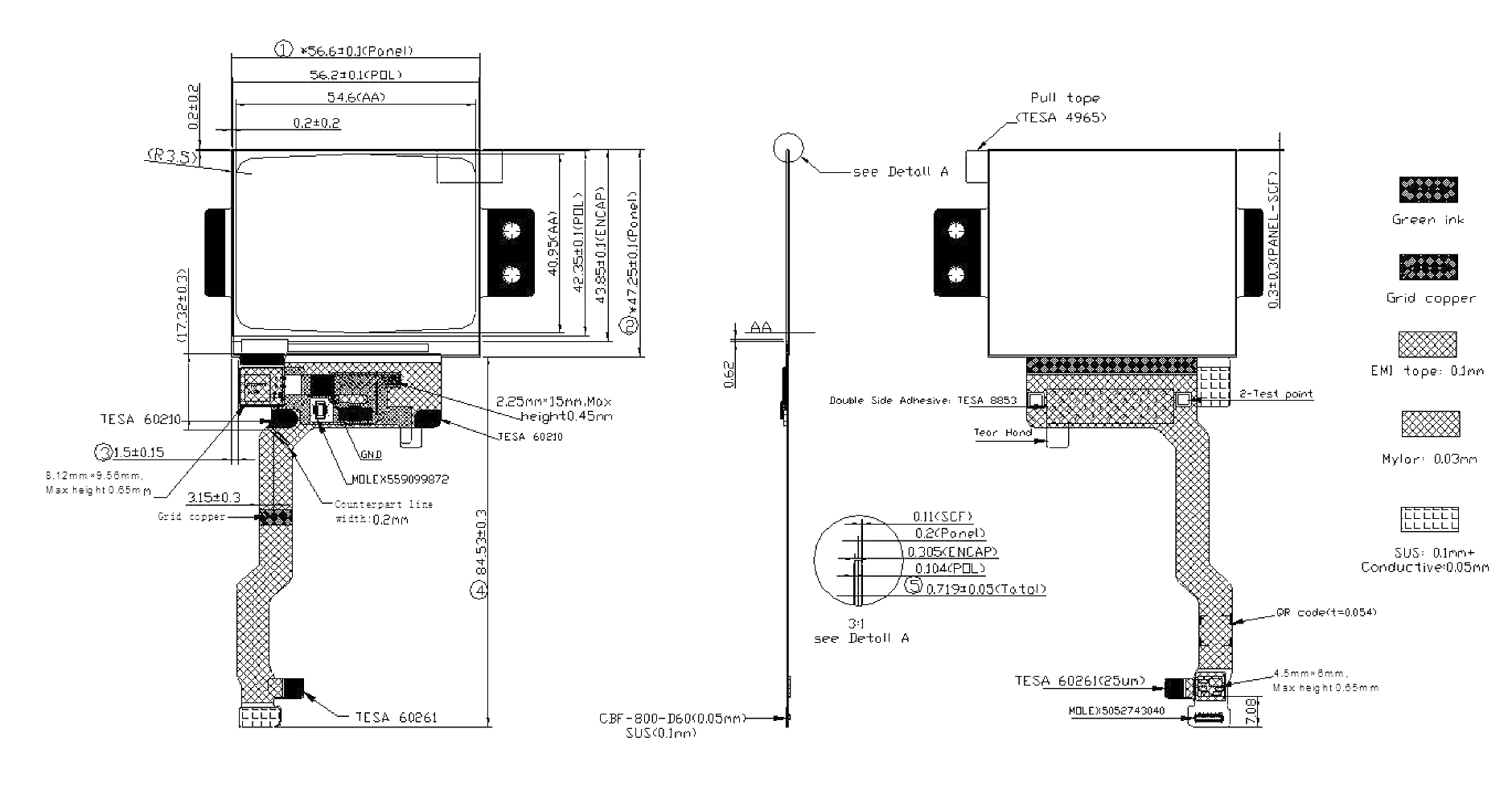

PANEL OUTLINE(mm) 56.6x47.25x0.505
ACTIVE AREA(mm) 54.6x40.95
PIXEL PITCH(μm) 68.25x68.25
BRIGHTNESS(Typ) 420 cd/m2
OPERATING TEMP. -40℃~85℃
STORAGE TEMP. -55℃~125℃
CONTRAST 1600:1
FRAME RATE(Hz) 50









File Type
Documents Name (Downloadable)
Version
Language
Update Date
File Size
GDOJ0269C01-T01 Specification
1.0
English
2025-07-01
6.64MB
RM69700 Datasheet
1.0
English
2025-07-01
3.26MB
